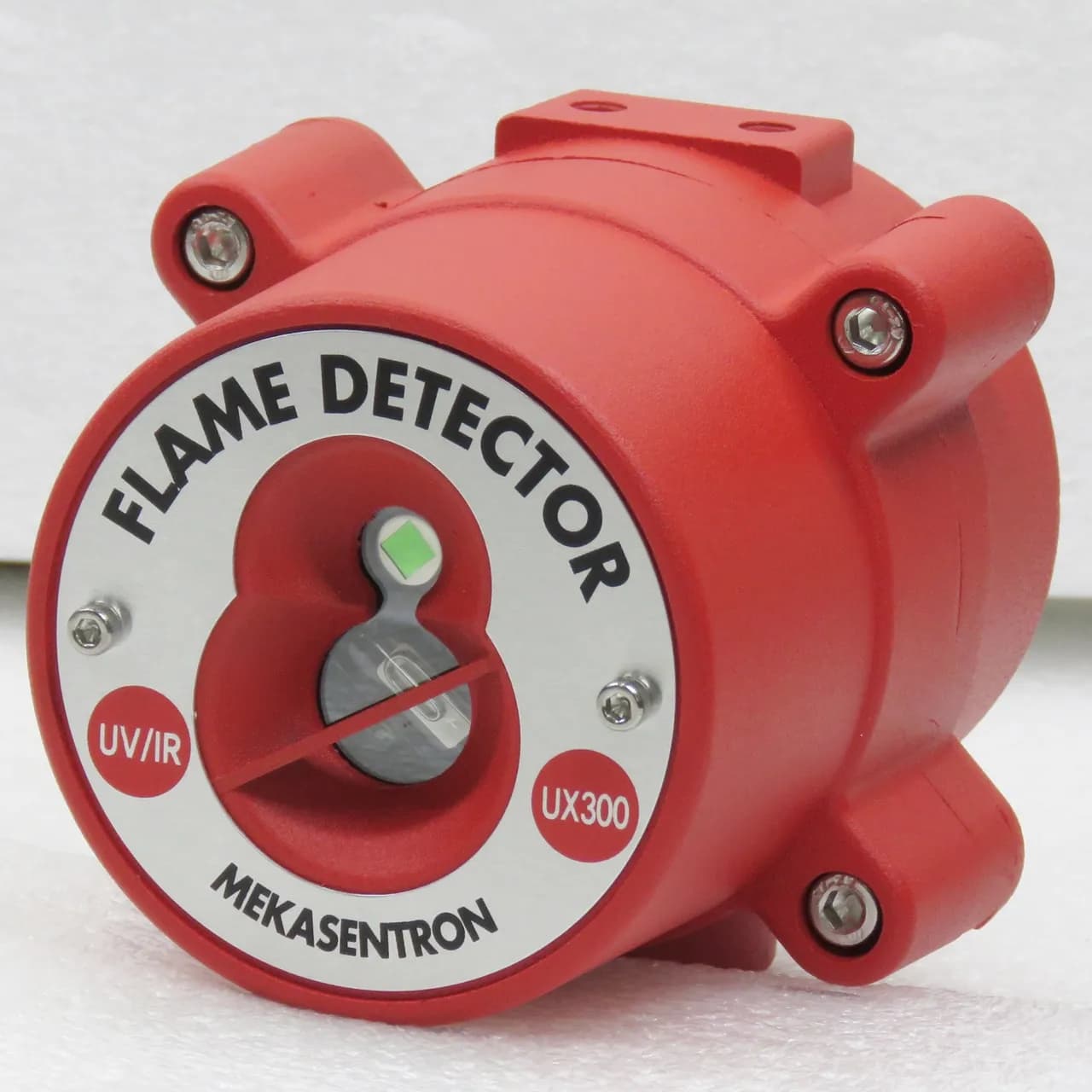

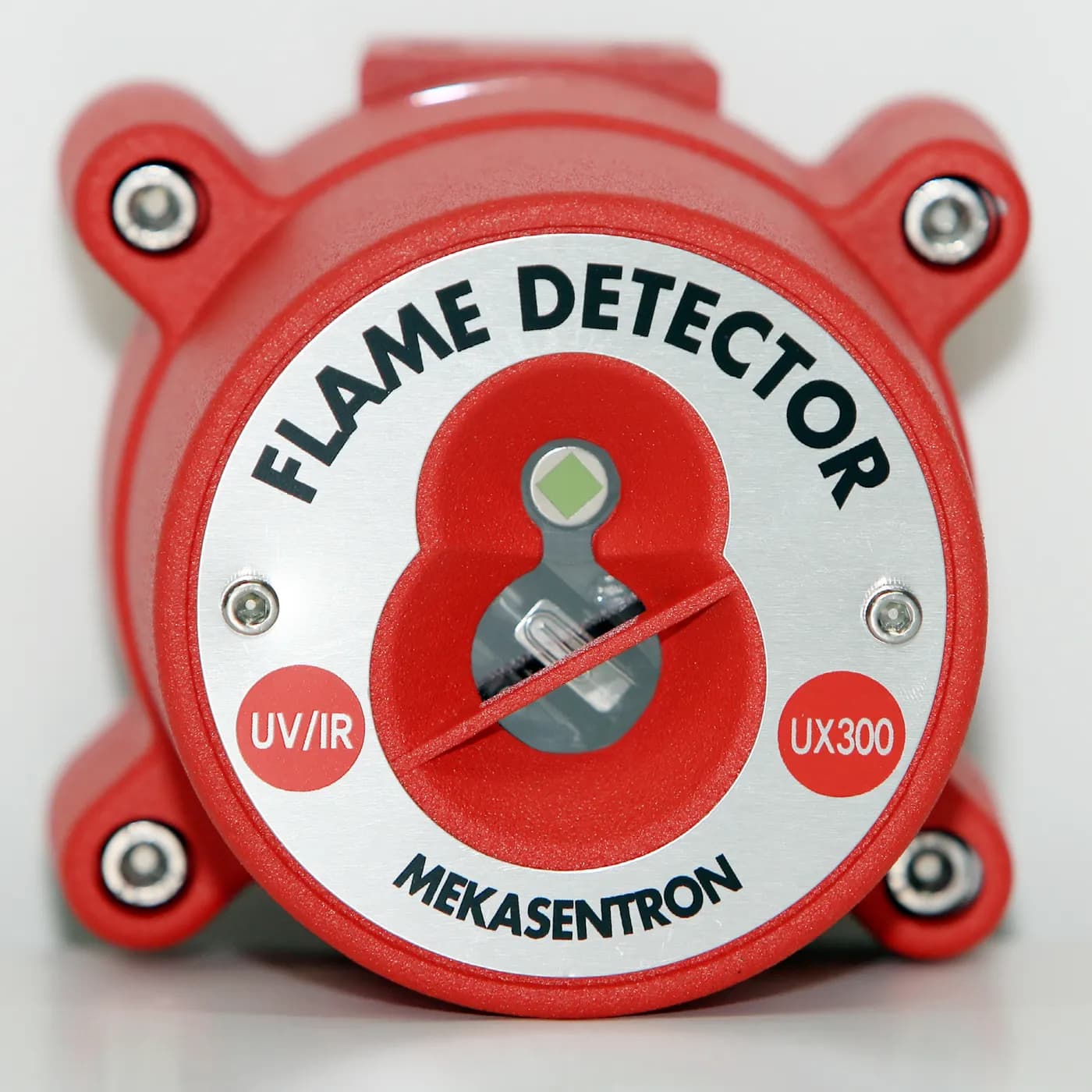

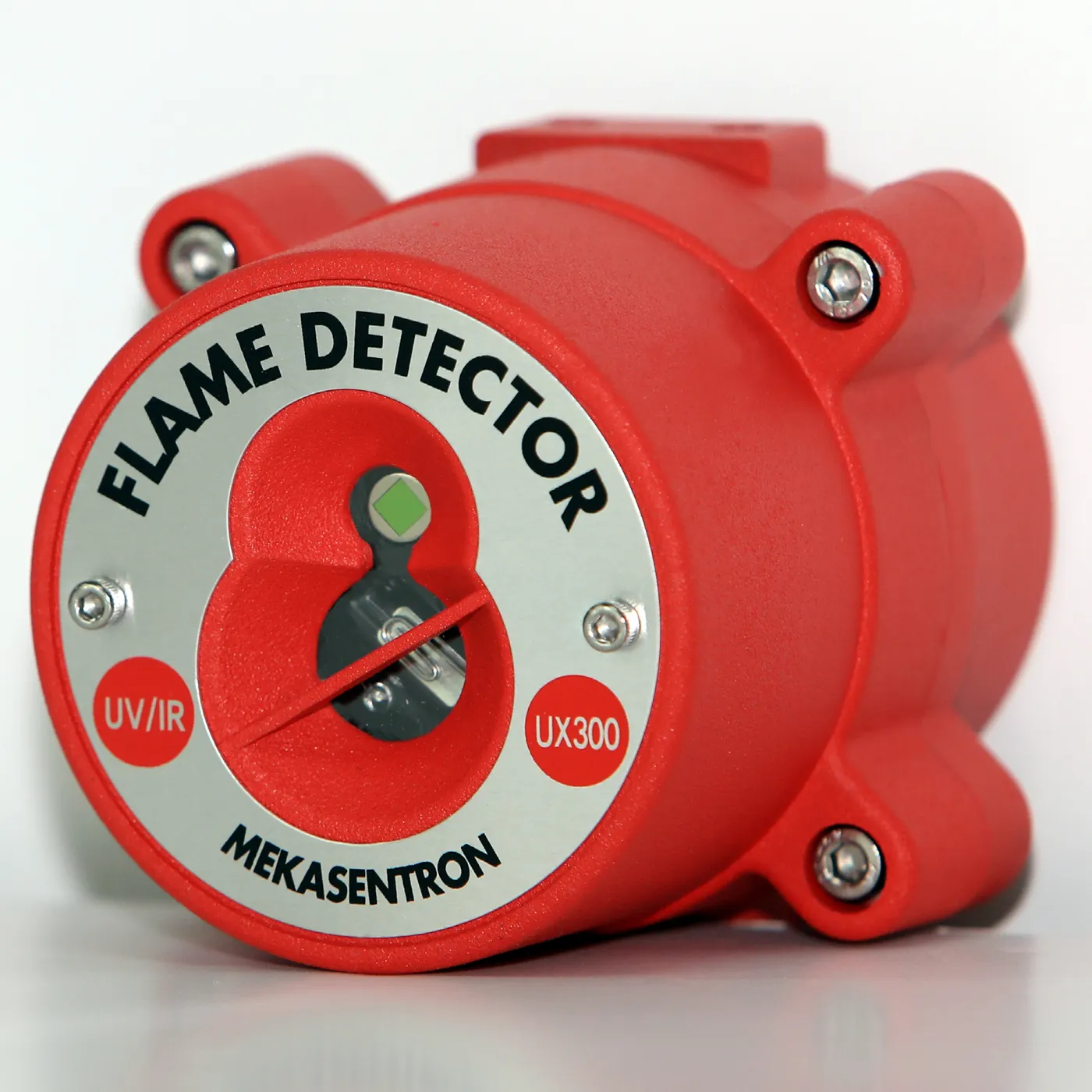

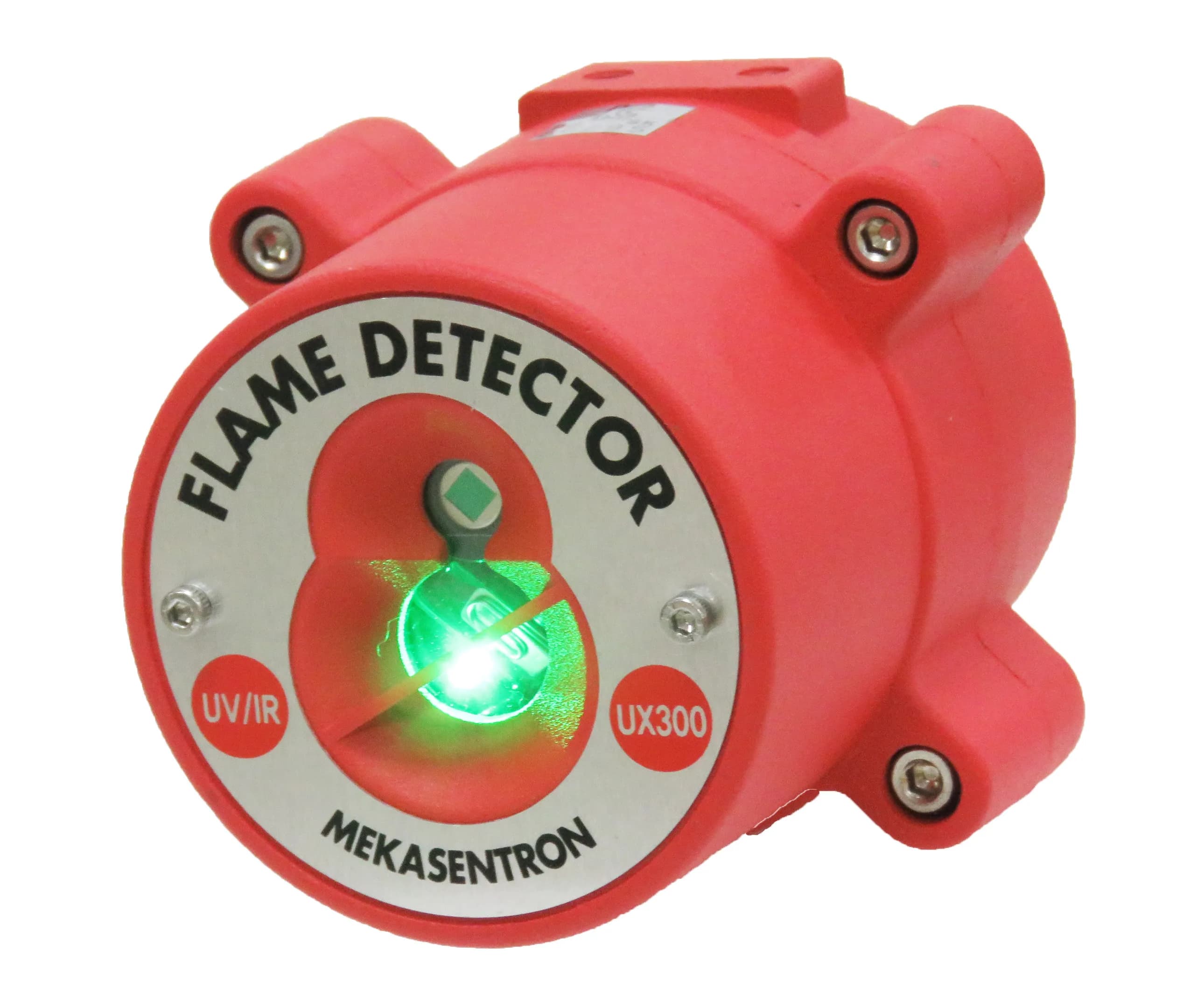

UX300 - UV/IR H2 Flame Detector

Product TypeUV/IR Flame Detector
CertificationsFM, IECEx, ATEX, NEPSI
Detection Range30m
Response TimeTypical 5 Sec
Field of View100° of Horizontal and Vertical
Temperature Range-40°C to +75°C
Humidity0 – 95%
Input RangeDC 24V ± 20%
Power ConsumptionIn Stand-By: 2.5W, In Alarm: 3W
WeightBody: 1.4Kg including cable gland, Tilt Mount: 400g
DimensionBody: 94 x 96 x 105mm, Tilt Mount: 80 x 80 x 175mm
MaterialAluminium (Body and Tilt Mount)
Explosion ProofEx d II B+H2 T6 / Ex tD A21 IP66 T85°C
Water and Dust ProtectionIP66

Manufacturer: MEKACENTRON Inc.

1 of 2

Key Applications

Hydrogen Production
Fuel Cell Facilities
Chemical Manufacturing
Laboratories
Gas Storage Areas
Power Generation
Clean Energy Facilities
Aerospace Industry
Semiconductor Manufacturing
Research Facilities
